SONARGAON STEELS LTD

Products of Sonargaon Steels Ltd

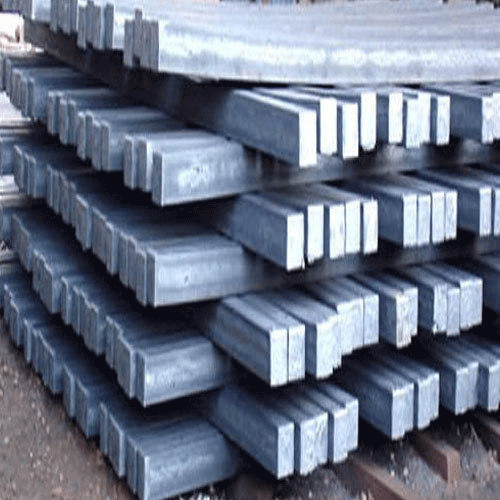

Billet

Steel Billets is the second stage product produced in the process of making steel bars. The raw steel cannot be used in its pure form, it has to cast into a shape before being used. The freshly made steel, which is still in the form of a metal bar or rectangle, is called steel billet.

Steel Angles - MS Angles

Steel Angles are the most basic type of roll-formed steel. They are formed by bending a single angle in a piece of steel. Angle Steel is ‘L’ shaped; the most common type of Steel Angles are at a 90 degree angle. The legs of the “L” can be equal or unequal in length.

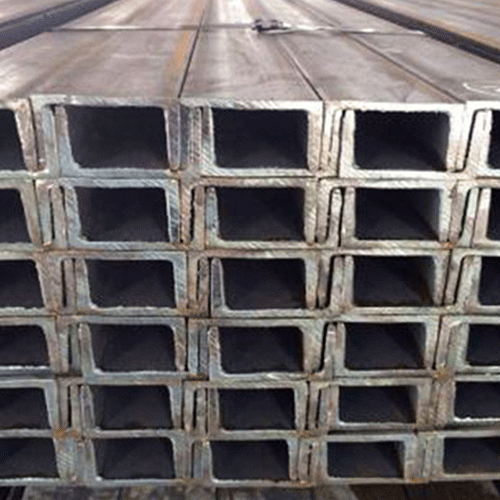

Structural Channels - MS Channels

The structural channel, also known as a C-channel or Parallel Flange Channel (PFC), is a type of (usually structural steel) beam, used primarily in building construction and civil engineering. Its cross section consists of a wide “web”, usually but not always oriented vertically, and two “flanges” at the top and bottom of the web, only sticking out on one side of the web. It is distinguished from I-beam or H-beam or W-beam type steel cross sections in that those have flanges on both sides of the web.

Equal Angle Weight Table

Size (Length)ThicknessNominal MassLength per M.T.Normally Available LengthMax. Lengths Rolled
InchInchmmLb/ftKg/mFeetMetreFeetMetreFeetMetre
4″ x 4″
101.6 x 101.6
(mm)
25/649.929.9214.8022167.5618 – 205.5 – 6.030 – 409.15 – 12.20
4″ x 4″
101.6 x 101.6
(mm)
15/3211.9011.7817.5718756.9218 – 205.5 – 6.025 – 357.6 – 10.6
4″ x 4″
101.6 x 50.8
(mm)
1/46.3506.049.00364111.1120 – 226.0 – 6.725-307.6 – 9.15
3″ x 3″
76.2 x 76.2
(mm)
3/89.5257.1010.5631094.520 – 226.0 – 6.750 – 6015 – 18
5/167.8376.008.93367112.020 – 226.0 – 6.7
1/46.3504.807.14459140.020 – 226.0 – 6.7
2.5″ x 2.5″
63.5 x 63.5
(mm)
3/89.5255.908.78374114.020 – 226.0 – 6.760 – 7018 – 21
5/167.9375.007.44441134.520 – 226.0 – 6.7
1/46.3504.005.95551168.020 – 226.0 – 6.7
2″ x 2″
50.8 x 50.8
(mm)
3/89.5254.606.84479146.020 – 226.0 – 6.770 – 8021 – 24
5/167.9373.905.80565172.020 – 226.0 – 6.7
1/46.3503.204.76689210.020 – 226.0 – 6.7
2″ x 2″
50.8 x 50.8
(mm)
3/84.7622.443.63903225.520 – 226.0 – 6.780 – 9024 – 27
5/167.9372.854.24773235.520 – 226.0 – 6.7
1/46.3502.353.49938286.020 – 226.0 – 6.7
3/164.7621.802.681.224373.020 – 226.0 – 6.7

*** We can produce angles of other specification as per customer requirement.

Channel Weight Table

Size (Length)ThicknessNominal MassLength per M.T.Normally Available LengthMax. Lengths Rolled
InchInchmmLb/ftKg/mFeetMetreFeetMetreFeetMetre
3″ x 1.5″
96.2 x 38.1
(mm)
15/645.959.1713.68239.7773.1020 – 226.0 – 6.750 – 6015 – 18
4″ x 2″
101.6 x 50.8
(mm)
15/645.9512.1618.13181.0055.1620 – 226.0 – 6.730 – 409.15 – 12.20
